Lfp Deep Cycle Lithium Ion Battery , Home 15kwh Solar Stacked Energy Storage Battery

Shenzhen Jinghongtai Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Lfp Deep Cycle Lithium Ion Battery , Home 15kwh Solar Stacked Energy Storage Battery from wholesalers

    Buy cheap Lfp Deep Cycle Lithium Ion Battery , Home 15kwh Solar Stacked Energy Storage Battery from wholesalers
    • Buy cheap Lfp Deep Cycle Lithium Ion Battery , Home 15kwh Solar Stacked Energy Storage Battery from wholesalers
    • Buy cheap Lfp Deep Cycle Lithium Ion Battery , Home 15kwh Solar Stacked Energy Storage Battery from wholesalers
    • Buy cheap Lfp Deep Cycle Lithium Ion Battery , Home 15kwh Solar Stacked Energy Storage Battery from wholesalers

    Lfp Deep Cycle Lithium Ion Battery , Home 15kwh Solar Stacked Energy Storage Battery

    Ask Lasest Price
    Brand Name : JHOTA
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100pcs
    Delivery Time : 30-40 days
    • Product Details
    • Company Profile

    Lfp Deep Cycle Lithium Ion Battery , Home 15kwh Solar Stacked Energy Storage Battery

    Specification
    Model
    15KW Stacked Energy Storage System (5KWH battery + 5KW inverter)
    BATTERY
    Battery Type
    LifePo4
    Battery Energy
    15.36KWh
    Battery Capacity
    100Ah (Min 97Ah) x 3
    5KWH Energy Storage System Net Weight
    181 KG
    5KWH Energy Storage System Net Dimension
    650*460*765 mm
    Battery Rated Voltage
    51.2V (16S)
    Overcharge Protection Voltage
    58.4V
    Overdischarge protection voltage
    40V
    Maximum Charging Current
    80A
    Maximum Discharging Current
    100A
    Packing Part I Weight: Inverter + Base
    37 KG
    Packing Part Il Weight: Battery
    53 KG
    Total Packing Part Weight: 1 inverter + 1 base + 3 battery
    196 KG
    Packing Part I Dimension: Inverter + Base
    735*550*590 mm
    Packing Part Il Dimension: Battery
    745*550*320 mm
    Total Packing Part Dimension: 1 inverter + 1 base + 3 battery
    74.5*55*155 cm
    DOD
    80%
    Designed Life-span
    6000
    Four Charging Modes are Optional
    Solar only, Mains priority, Solar priority, Hybrid charging
    Three Output Modes
    1.Mains priority mode:
    Power supply sequence: Mains power - Photovoltaic - Battery.

    2.Inverter priority mode:
    Power supply sequence: Photovoltaic - Battery - Mains.

    3.Photovoltaic priority mode:
    Power supply sequence: Photovoltaic - Mains - Battery.
    PV CHARGE
    Maximum PV Open-circuit Voltage
    500vdc
    PV Working Voltage Range
    120-500Vdc
    MPPT Voltage Range
    120-450Vdc (Suggest: 300 - 400Vdc)
    Maximum PV Input current
    18A
    Maximum PV Input Power
    5200W (Suggest: 1500 - 2000W)
    Maximum PV Charing Current
    80A
    MAINS CHARGING
    Rated Input Voltage
    220/230Vac(√) 110/120Vac( )
    Input Voltage Range
    UPS Mains Mode: (170Vac - 280Vac) ± 2%
    APL Generator Mode: (90Vac - 280Vac) ± 2%
    Mains Maximum Charging Current
    60A
    Mains Charging Efficiency
    >95%
    INVERTER
    Output Waveform
    Pure Sine Wave
    Rated Output Voltage
    230Vac (200 / 208 / 220 / 240Vac) (√)

    120Vac (100 / 105 / 110Vac) ( )
    Rated Output Power
    5000W
    Maximum Peak Power
    10000VA
    Frequency
    60Hz
    Over Temperature Protection
    60°C-70°C
    Number of Parallel / Split Phases
    1-6 pieces
    On-load Motor capacity
    4HP
    Maximum Efficiency
    >90%
    No load loss
    Non Energy-saving Mode: <50W
    Energy-saving Mode: <25W (Manual Setup)
    GENERAL DATA
    Certificate
    CE, UN38.3, MSDS, IEC 62619, Sea report
    Storage time / Temperature
    6 months @25°C;
    3 months @35°C;
    1 months @45°C;
    Charging Temperature Range
    -10~55°C
    Discharging Temperature Range
    -10~55°C
    Operation Humidity
    5%~95°C
    Noise
    60dB (A)
    Recommended Operation Environment
    Indoor
    Installation Method
    Horizontal
    Product Description
    Home battery 15kwh solar wholesale price LFP deep cycle Stacked Home Lithium Storage

    Lfp Deep Cycle Lithium Ion Battery , Home 15kwh Solar Stacked Energy Storage Battery

    Quick Details:

    1. Maximum PV Open-circuit Voltage: 500vdc
    2. Maximum PV Input Power: 5200W (Suggest:1500-2000W)
    3. Rated Input Voltage: 220/230Vac
    4. Battery Rated Voltage: 51.2V (16S)
    5. Four charging modes are optional: Solar only, Mains priority, Solar priority, Hybrid charging
    6. Storage time / temperature: 6 months @25℃;3 months @35℃;1 months@45℃

    Lfp Deep Cycle Lithium Ion Battery , Home 15kwh Solar Stacked Energy Storage Battery

    Advantages:

    1. High security: Built-in BMS multiple protection communication function to monitordata in realtime;
    2. Long cycle life: 80% DOD depth ofdischarge, battery cyclelife>3000 times;
    3. Large capacity: Parallel use of battery packsmeet the needs oflargecapacity applications;
    4. High consistency: Low internal resistancegood battery discharge consistency;
    5. Standard design: Maintenance-free, suitable foruse in communication cabinets.

    Appliciation

    - Residential energy backup during power outages
    - Off-grid cabins or vacation homes
    - Powering outdoor recreational vehicles and equipment
    - Backup power for government facilities and buildings
    - Powering remote wildlife tracking and conservation efforts
    - Powering off-grid RVs and motorhomes

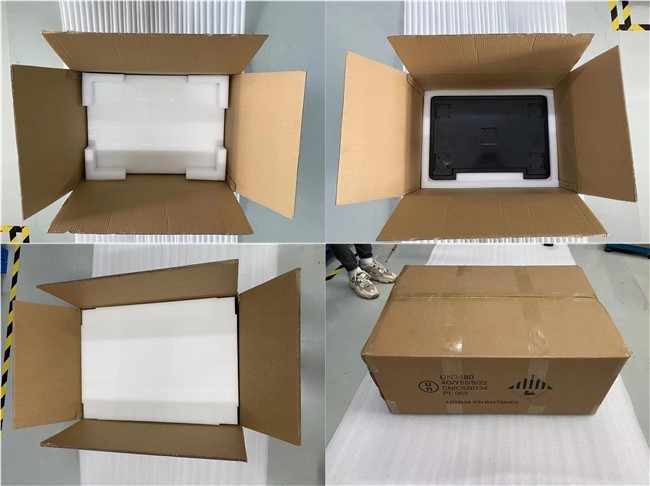

    Package

    Lfp Deep Cycle Lithium Ion Battery , Home 15kwh Solar Stacked Energy Storage Battery

    FAQ

    Q1: How about your Stacked Home Lithium Storage Battery delivery time?
    A: 1-25 workdays after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


    Q2: How about your warranty?
    A: 5 Years Warrenty.


    Q3: Are you a trader or factory?
    A: We are the professional factory who specilized in lithium battery pack field for 12 years, with more than 100 employees.


    Q4: Is this Stacked Home Lithium Storage Battery safe?
    A: Certainly. We use pure A-grade battery cells with guaranteed quality.
