    5000W 48v 300ah LiFePO4 Lithium Battery Stacked Household Energy Storage System

    Ask Lasest Price
    Brand Name : JHOTA
    Model Number : HLSB03
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100pcs
    Delivery Time : 30-40 days
    • Product Details
    • Company Profile

    5000W 48v 300ah LiFePO4 Lithium Battery Stacked Household Energy Storage System

    Specification
    Model Number
    HLSB03
    Battery parameters
    Nominal Voltage
    48V
    Rated Capacity
    Typical 300Ah
    Minimum 290Ah
    Charging Voltage
    54.75V
    Charging Mode
    C.C / C.V.
    Voltage at end of Discharge
    37.5V
    Rated Charge Current
    ≤60A
    Maximum Continuous Charge Current
    ≤80A
    Internal Impedance
    <100mΩ
    Rated Discharge Current
    ≤200A
    Maximum Continuous Discharge Current
    ≤200A
    Overcharge Voltage
    3.65±0.05V (Adjustable)
    Over Discharge Cut Off Voltage
    2.5±0.01V (Adjustable)
    Over Current
    Discharge overcurrent value: ≧205A
    Short Circuit
    Detection condition
    Release condition
    Operation Temperature Range
    Charge: 0~55℃
    Discharge: -20~55℃
    Storage Temperature Range
    Less than 7 day : -20~65℃

    Product Description

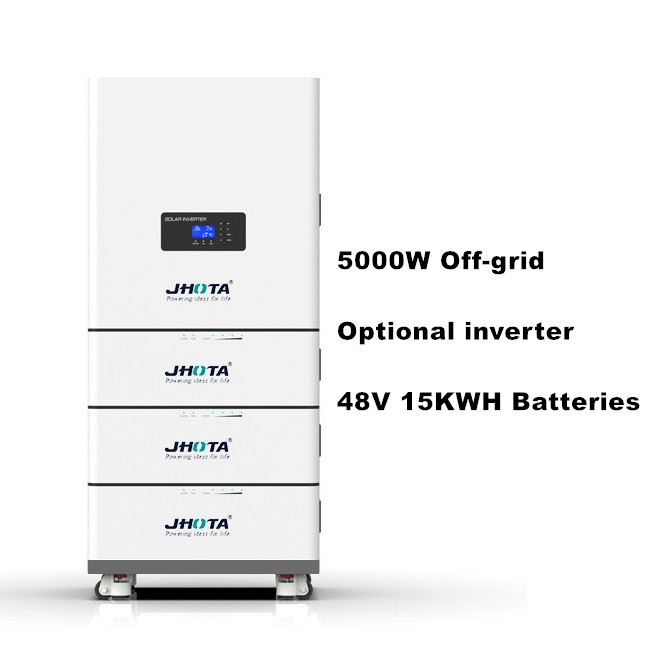

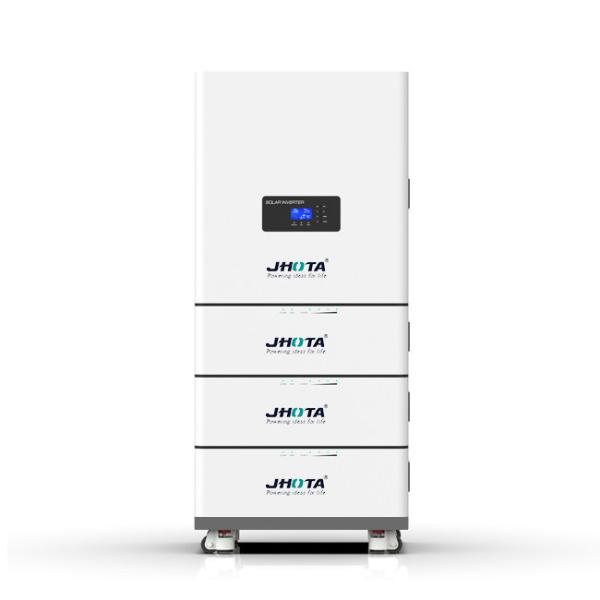

    Stacked Home Energy Storage System 5000W inverter 300AH Battery 48V


    5000W 48v 300ah LiFePO4 Lithium Battery Stacked Household Energy Storage System

    Quick Details:

    1. Warrenty: 3 Years
    2. OEM/ODM: Accepatable
    3. AC Rated Output Power: 5KW
    4. Inverter Type: Pure Sine Wave
    5. Power Source: Solar Panel, Power Battery, Municipal electricity
    6. Controller Type: MPPT

    5000W 48v 300ah LiFePO4 Lithium Battery Stacked Household Energy Storage System

    Inverter parameters
    Solar Input
    Maximum PV Open-circuit Voltage
    500vdc
    PV Working Voltage Range
    120-500Vdc
    MPPT Voltage Range
    120-450Vdc
    Maximum PV Input Current
    18A
    Maximum PV Input Power
    5200W
    Maximum PV Charging Current
    80A
    AC Input (generator / grid)
    Mains Maximum Charging Current
    40A
    Rated Input Voltage
    110/120Vac
    Input Voltage Range
    (90Vac~140Vac)±2%
    Frequency
    50Hz/ 60Hz (Automatic Detection)
    Mains Charging Efficiency
    >95%
    Switch Time (bypass and inverter)
    10ms(Typical Value)
    Maximum Bypass Overload Current
    63A
    AC Output
    Output Voltage Waveform
    Pure Sine Wave
    Rated Output Voltage
    120 (100/105/110Vac)
    Rated Output Power
    5000 (4100/4300/4500VA)
    Rated Output Power
    5000 (4100/4300/4500W)
    Peak Power
    10000VA
    On-load Motor Capacity
    4HP
    Output Frequency Range (Hz)
    50Hz土0.3Hz/60Hz±0.3Hz
    Maximum Efficiency
    >90%
    No-load Loss
    Non Energy-saving Mode: ≤50W Energy-saving Mode:≤25W (Manual Setup)
    General
    Humidity Range
    5% to 95%(Conformal Coating Protection)
    Dimensions
    603*430*1350mm
    Weight
    about 210kg
    Communication mode
    Working voltage, working current, remaining capacity
    Our Factory
    1. Our product range: solar panels, inverters, controllers, batteries, on-grid and off-grid solar systems. Our goal is to manufacture and deliver reliable and innovative solar panels and solar energy solutions to the world. As a production manufacturer, we are constantly updating our technology to use clean, renewable solar energy more efficiently and encourage our customers to explore responsibly to offset our carbon footprint.
    2. Our commitment to quality and service is unmatched in the industry. In a rapidly innovating industry, it's best to have a trusted partner like JHOTA to help you navigate your options so you can get the most out of your renewable energy investment.
    3. JHOTA Home Energy Storage System battery is a Ground mounted lithium battery pack which consists of long life-span LiFePO4 battery cells and functional BMS. It can store and release electric energy based on the requirements of the inverter controller. It is mainly for home energy storage system.

    5000W 48v 300ah LiFePO4 Lithium Battery Stacked Household Energy Storage System

    FAQ:

    1.What’s the lead time for mass production?
    It depends on the actual situation. 48V100ah LFP battery pack,3-7 days with stock, if without stock, that will be depends on your order quantity, normally needs 20-25 days.


    2. Do you accept ODM/OEM orders?
    Yes, we can accept OEM/ODM, you can change the logo and function as you want.


    3.How can I be your distributor or service partner?
    Yes, please directly email to us, we can discuss about this. We need to know your target market, what application you want to cover, and estimated annual purchase volume.


    4. How can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment.
