| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah@0.2C |
| Energy | 1280Wh |
| Internal Resistance | ＜45mΩ |
| Cycle Life | 3000 Cycles @0.2C Charging/Discharging,Until 70% Capacity |
| Self Discharge | ＜3.5% per month at 25℃ |
| Max.Charging Voltage | 14.0-14.6V |
| Charging Mode | At 0℃-45℃ temperature,charged to 14.6V at a constant current of 0.2C5A, and then, changed continuously with constant voltage of 14.6V until the current was not more than 0.02C 5A |
| Charging Current | 20A |
| Max.Charging Current | 50A |
| Discharging Current | 20A |
| Max.Continuous Current | 100A |
| Max.Pulse Current | 200A(＜3S) |
| Discharging Cut-Off Voltage | 10.0 |
| Charge Temperature | 0℃-45℃ @60±25% Relative Humidity |
| Discharge Temperature | -20℃-60℃ @60±25% Relative Humidity |
| Storge Temperature | 0℃-45℃ @60±25% Relative Humidity |
| Water Dust Resistance | IP55 |
| Cell&Format | IFR32700 N60,4S17P |
| Casing | Plastic |
| Dimension(L*W*H) | 328*172*220mm |
| Weight | Approx. 12.6kg |
| Terminal | M8 |

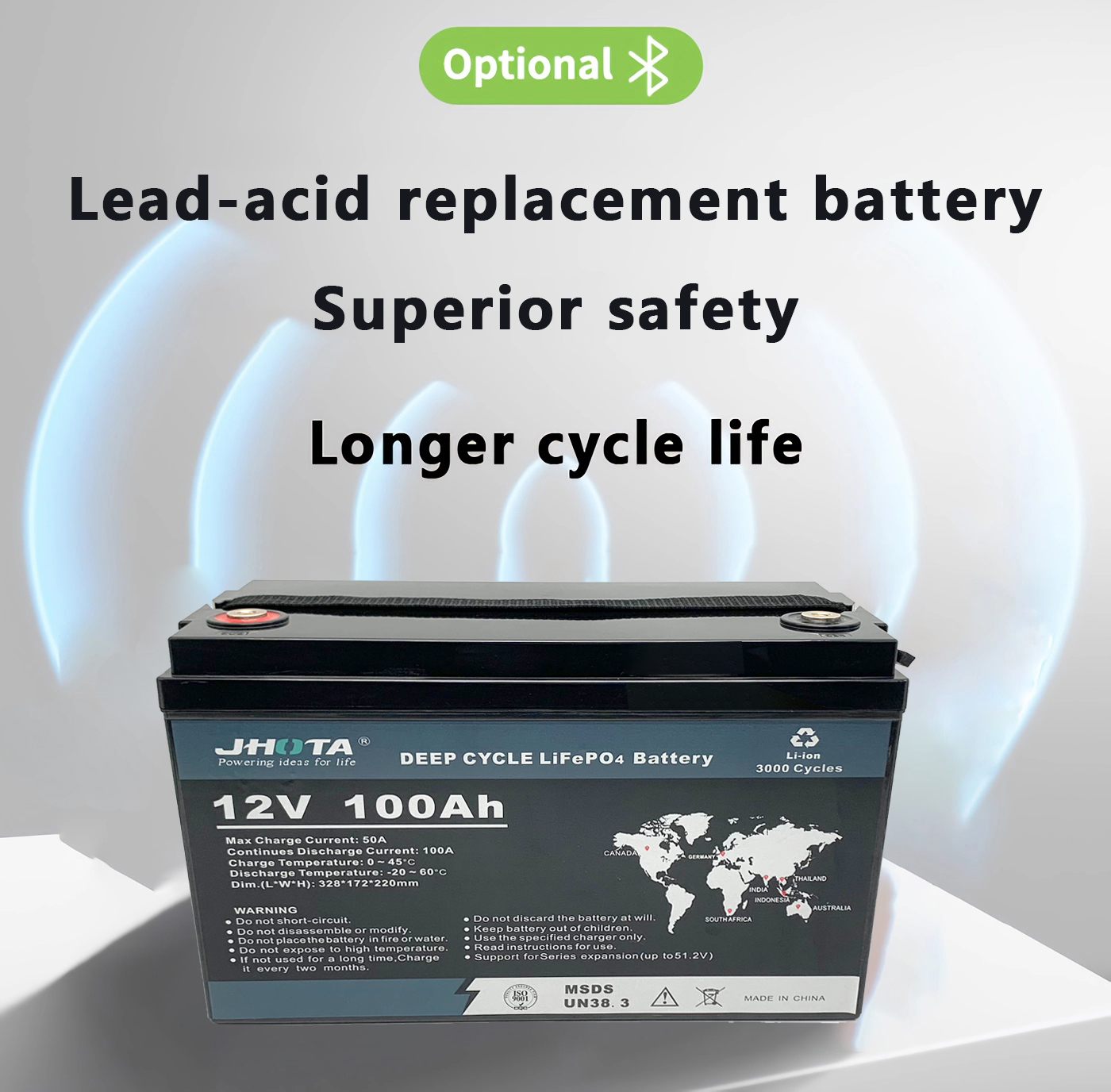

Customzied Capacity 12.8V 100Ah With Deep Cycle Power And Low Self-Discharge |
Quick details:
1.Extremely Long cycle Life
2.The design life is up to 5 Years
3.In parallel or in series
4.Mobile Phone APP monitoring
5.Ultra Safe
6.OEM&ODM contact me
Description:
1. This battery is a lithium battery that replaces lead-acid batteries. The rated voltage of the battery is 12.8V and the rated capacity is 100Ah. The battery adopts the appearance of a square aluminum shell and is composed of a single cell 4S1P.
2. The battery has excellent temperature stability, can withstand high temperature of 80 degrees, no thermal runaway, no risk of fire or explosion. This battery has a long cycle life of up to 2500 cycles.
3. The finished battery pack can support 50A continuous discharge. It has a strong depth of discharge and is much lighter than traditional lead-acid batteries. The single cell used for combination can be selected according to customer requirements.
Appliciation
1. Outdoor activities such as camping, hiking, and boating where portable energy storage is needed for charging devices and powering small appliances.
2. Emergency situations such as power outages, natural disasters, and off-grid living where a portable energy storage system can provide backup power for essential devices and equipment.
3. Remote and off-grid locations such as rural communities, construction sites, and scientific research stations where portable energy storage is essential for powering equipment and tools.
4. Mobile and transportation applications such as electric vehicles, drones, and mobile medical devices where portable energy storage is required for powering and recharging.
5. Entertainment and events such as music festivals, outdoor concerts, and film productions where portable energy storage is used for lighting, sound systems, and other equipment.
Q: Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Q: Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.
Q: Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
Q: What is the biggest difference between your battery and other suppliers?
A: Over 10 Years production experience with this model battery; Battery made of UN38.3 MSDS certificated battery cell, PCB structure Battery module, Build in Smart BMS for protection;
Q: What's the Lead time of the battery?
A: 3-10 work days; Specific Lead time depend on the quantity and requirement.
