| Nominal Voltage | 12.8V |
| Nominal Capacity | 54Ah@0.2C |
| Energy | 691.2Wh |
| Internal Resistance | ＜50mΩ |
| Cycle Life | 2500 Cycles @0.2C Charging/Discharging,Until 70% Capacity |
| Self Discharge | ＜3.5% per month at 25℃ |
| Max.Charging Voltage | 14.0-14.6V |
| Charging Mode | At 0℃-45℃ temperature,charged to 14.6V at a constant current of 0.2C5A,and then,changed continuously with constant voltage of
14.6V until the current was not more than 0.02C5A |
| Charging Current | 10.8A |
| Max.Charging Current | 27A |
| Discharging Current | 10.8A |
| Max.Continuous Current | 54A |
| Max.Pulse Current | 120A(＜3S) |
| Discharging Cut-Off Voltage | 10.0 |
| Charge Temperature | 0℃-45℃ @60±25% Relative Humidity |
| Discharge Temperature | -20℃-60℃ @60±25% Relative Humidity |
| Storge Temperature | 0℃-45℃ @60±25% Relative Humidity |
| Water Dust Resistance | IP55 |
| Cell&Format | IFR32700 N60,4S9P |
| Casing | Plastic |
| Dimension(L*W*H*Th) | 229*138*212*217mm |
| Weight | Approx. 6.7kg |
| Terminal | M6 |

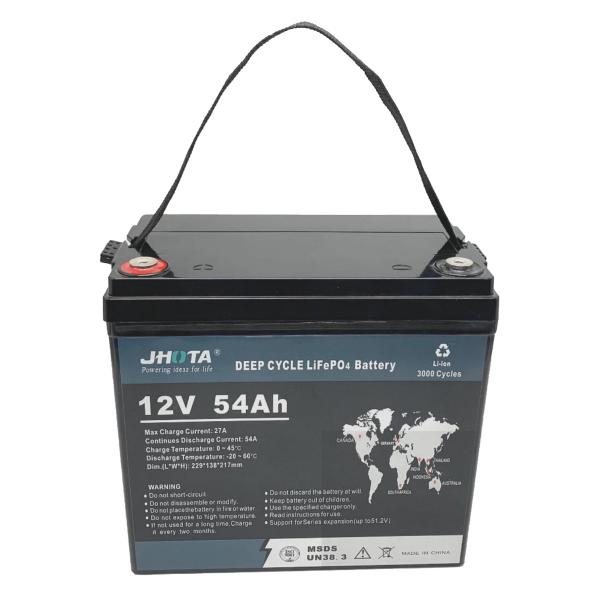

JHOTA 12.8V 54Ah Deep Cycle Capacity Customized Lithium Battery Lead Acid Replacement |
Quick details:
1.MOQ:2
2.Supply to all around the world
3.Best choice for solar power system, solar light system, electric vehicle
4.Expert/Factory/manufacture
5.Deep cycle with 3000 times
6.Warranty:5 years
Positive and negative terminal posts
Max.Continuous Current: 54A
Description:
1. This battery is a lithium battery that replaces lead-acid batteries. The rated voltage of the battery is 12.8V and the rated capacity is 54Ah.
2. The battery has excellent temperature stability, can withstand high temperature of 80 degrees, no thermal runaway, no risk of fire or explosion. This battery has a long cycle life of up to 3000 cycles.
3. It has a strong depth of discharge and is much lighter than traditional lead-acid batteries. The single cell used for combination can be selected according to customer requirements.
Appliciation
1. Outdoor activities such as camping, hiking, and boating where portable energy storage is needed for charging devices and powering small appliances.
2. Emergency situations such as power outages, natural disasters, and off-grid living where a portable energy storage system can provide backup power for essential devices and equipment.
3. Remote and off-grid locations such as rural communities, construction sites, and scientific research stations where portable energy storage is essential for powering equipment and tools.
4. Mobile and transportation applications such as electric vehicles, drones, and mobile medical devices where portable energy storage is required for powering and recharging.
5. Entertainment and events such as music festivals, outdoor concerts, and film productions where portable energy storage is used for lighting, sound systems, and other equipment.
Why choose us?
1. Extremely Long cycle Life
The battery capacity is over 80% after 1C charge and discharge under 100% DOD condition 100%.
2. In parallel or in series
Easy to extended in parallel or in series to get more capacity or higher voltage.
3. Mobile Phone APP monitoring
The battery status, cycle life, Temp. Voltage, current, etc, can be checked by phone bluetooth APP(can custom your own brand APP).
4. Ultra Safe
Adopt intelligent BMS, could pass high current, Multiple built in protection functions, protect battery from over charge, overdischarge, over current, over temperature, short circuit.
