UN38.3 3.2v 100ah Prismatic LiFePO4 Battery Cell For EV Solar Wind Energy

Shenzhen Jinghongtai Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap UN38.3 3.2v 100ah Prismatic LiFePO4 Battery Cell For EV Solar Wind Energy from wholesalers

    Buy cheap UN38.3 3.2v 100ah Prismatic LiFePO4 Battery Cell For EV Solar Wind Energy from wholesalers
    • Buy cheap UN38.3 3.2v 100ah Prismatic LiFePO4 Battery Cell For EV Solar Wind Energy from wholesalers
    • Buy cheap UN38.3 3.2v 100ah Prismatic LiFePO4 Battery Cell For EV Solar Wind Energy from wholesalers

    UN38.3 3.2v 100ah Prismatic LiFePO4 Battery Cell For EV Solar Wind Energy

    Ask Lasest Price
    Brand Name : JHOTA
    Model Number : IFP40117220-100Ah
    Certification : shipping report
    Price : Based on the price of the day
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 20 days
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    UN38.3 3.2v 100ah Prismatic LiFePO4 Battery Cell For EV Solar Wind Energy

    Specification
    Model
    BAKCBBL100
    Minimal capacity
    100Ah
    Typical capacity
    101Ah
    Nominal voltage
    3.2V(0.5C)
    Charge Ending voltage
    3.65V
    Discharge ending voltage
    2.5V(>0℃),2.0V(≤0℃)
    Nominal energy
    320Wh
    Max. charge limited current
    150A(Continuous) / 300A(50%SOC,10s)
    Max. discharge limited current
    200A(Continuous) / 300A(50%SOC,10s)
    Charge temperature range
    0~55℃
    Discharge temperature range
    -20~60℃
    Storage temperature
    Recommended -10~35℃
    Allowable(short term)-30~55℃
    Internal resistance
    ≤ 0.6mΩ(AC Impedance, 1000 Hz)
    Cycle life
    ≥ 6000 cycles (0.2C/0.2C, RT)
    (standard charge and standard discharge)
    Weight
    1.92±0.05kg
    Product Description

    Prismatic 3.2v 100ah Lithium Lifepo4 Battery Cells For EV Solar Wind Energy

    UN38.3 3.2v 100ah Prismatic LiFePO4 Battery Cell For EV Solar Wind Energy

    Quick Details:

    1. Constant power during discharge(very low internal resistance)

    2. Energy efficiency>96%

    3. Minimum capacity loss, low self discharge(<5% per month)

    4. High safety performance, no leakage

    5. High discharge rate, stable discharge platform

    6. OEM&ODM contace us

    UN38.3 3.2v 100ah Prismatic LiFePO4 Battery Cell For EV Solar Wind Energy

    Description:

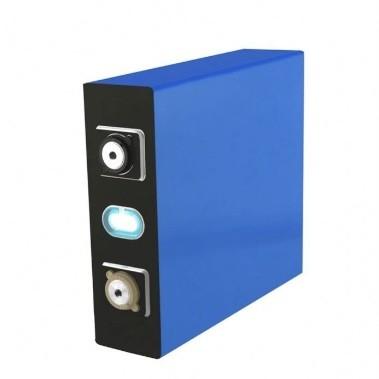

    1. This is a 3.2V, 100Ah square aluminum shell battery made of lithium iron phosphate material. The battery supports parallel and series connection, and supports precise pairing services of 5 millivolts, 3 milliohms, and 50mAh. With constant power during discharge, very low self-discharge (<5% per month) can be achieved.

    2. Batteries are available in bulk.

    3. The battery uses ultra-safe lithium-ion chemistry technology with excellent temperature stability (-20°C to +80°C), no thermal runaway, and no risk of fire or explosion.

    4. This battery has a long cycle life of up to 3000 cycles.

    5. The battery has passed ISO9001, CCS, IEC62619, MSDS, RoHS, UN38.3 and UL test report, you can fully trust our after-sales service

    UN38.3 3.2v 100ah Prismatic LiFePO4 Battery Cell For EV Solar Wind Energy

    Package
    UN38.3 3.2v 100ah Prismatic LiFePO4 Battery Cell For EV Solar Wind Energy
    UN38.3 3.2v 100ah Prismatic LiFePO4 Battery Cell For EV Solar Wind Energy
    UN38.3 3.2v 100ah Prismatic LiFePO4 Battery Cell For EV Solar Wind Energy
    Quality UN38.3 3.2v 100ah Prismatic LiFePO4 Battery Cell For EV Solar Wind Energy for sale
