    500Vdc Photovoltaic Energy Storage Inverter 10KW 240 Volt Split Phase Inverter

    Ask Lasest Price
    Brand Name : JHOTA
    Model Number : ASF48100U200-H
    Certification : CE/EMC/FCC/CETL/IEC61683
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100pcs
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    500Vdc Photovoltaic Energy Storage Inverter 10KW 240 Volt Split Phase Inverter

    10KW MAX PV 500V Input AC 120/240V Split Phase OutPut Wall Mounted Photovoltaic Energy Storage Inverter Optional Wifi Module


    Quick Details:

    1. Waveform: Pure Sine Wave
    2. Switch Time: 10ms(typical)
    3. Rated Output Voltage: 120/240Vac (L1/L2/N/PE split phase)
    4. Rated Output Power: 10,000W
    5. Max.MPPT Charging Current: 200A
    6. MPPT Tracking Efficiency: 99.9%


    Description:

    JHOTA 10KW Pure Sine Wave Off-grid Inverter is a multifunctional inverter/charger that combines the functions of an inverter, solar charger and battery charger to provide uninterruptible power support in a portable size.

    MPPT with up to 99.9% efficiency and up to 22A PV input current perfect for high power modules. Industrial design with a modern aesthetic look and easy to install and simple to use. Exclusive Li-ion battery BMS dual activation and Time-slot function to save cost with peak-valley tariff.
    Easy digital control, 500 PV input, 120/240Vac(L1/L2/N/PE split phase)OutPut, match 48V battery, provides reliable power conversion in a compact and rugged unit.This inverter provides reliable power conversion in a compact size. In addition, start the household refrigerators, water pumps, compressors, laser printers and other electrical loads, as well as TVs, computers, power tools, chargers and other electronic loads without worries.


    Specification:

    MODELJHOTA ASF48100U200-H
    INVERTER OUTPUT
    Rated Output Power10,000W
    Max.Peak Power20,000W
    Rated Output Voltage120/240Vac (L1/L2/N/PE split phase)
    Load Capacity of Motors6HP
    Rated AC Frequency50/60Hz
    WaveformPure Sine Wave
    Switch Time10ms (typical)
    Parallel capacity/
    BATTERY
    Battery TypeLi-ion / Lead-Acid / User Defined
    Rated Battery Voltage48Vdc
    Voltage Range40-60Vdc
    Max.MPPT Charging Current200A
    Max.Mains/Generator Charging
    Current
    120A
    Max.Hybrid Charging Current200A
    PV INPUT
    Num. of MPP Trackers2
    Max.PV array power11,000W
    Max.input current22/22A
    Max.Voltage of Open Circuit500Vdc
    MPPT Voltage Range125-425Vdc
    MAINS / GENERATOR INPUT
    Input Voltage Range90-140Vac
    Frequency Range50/60Hz
    Bypass Overload Current63A
    EFFICIENCY
    MPPT Tracking Efficiency99.9%
    Max. Battery Inverter Efficiency92%
    GENERAL
    Dimensions620*435*130mm (2*1.4*0.4ft)
    Weight21kg (46.3lb)
    Protection DegreeIP20,Indoor Only
    Operating Temperature Range-15~55℃,>45℃ derated
    (5~131℉,>113℉ derated)
    Noise<60dB
    Cooling MethodInternal Fan
    Warranty2 Years
    COMMUNICATION
    Embedded InterfacesRS485 / CAN / USB / Dry contact
    External Modules (Optional)Wi-Fi / GPRS
    CERTIFICATION
    SafetyIEC62109-1, IEC62109-2,UL1741
    EMCEN61000-6-1, EN61000-6-3, FCC 15 class B
    RoHSYes

    Advantages:
    1. Efficient: Dual MPPT with up to 99.9% efficiency and up to 22A PV input current perfect for high power modules.
    2. User-friendly: Industrial design with a modern aesthetic look and easy to install and simple to use.
    3. Reliable: Outputs high quality pure sine wave AC power and 10kW load power to meet the needs of most households.
    4. Safety: 360 degrees of security from hardware to software and EU and North American safety approvals.
    5. All-in-one: Solar Charger Controller up to 200A charging current and support for Li-ion battery BMS communication.

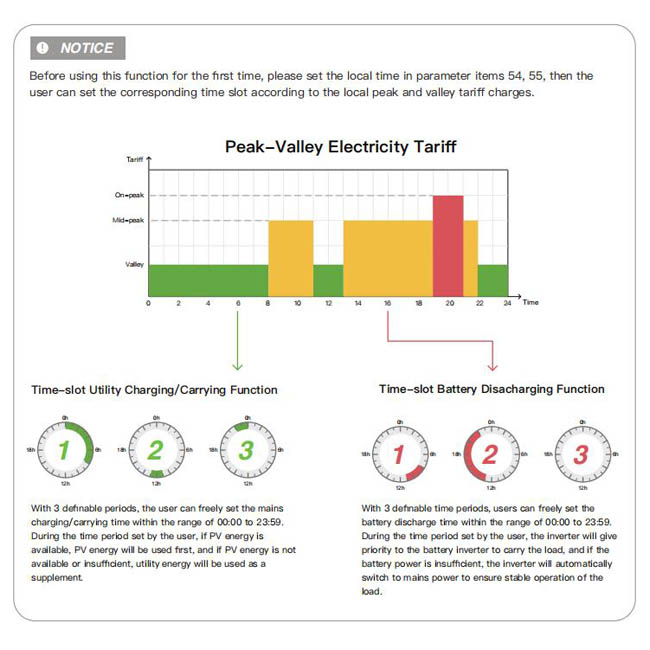

    6. Intelligent: Exclusive Li-ion battery BMS dual activation and Time-slot function to save cost with peak-valley tariff.

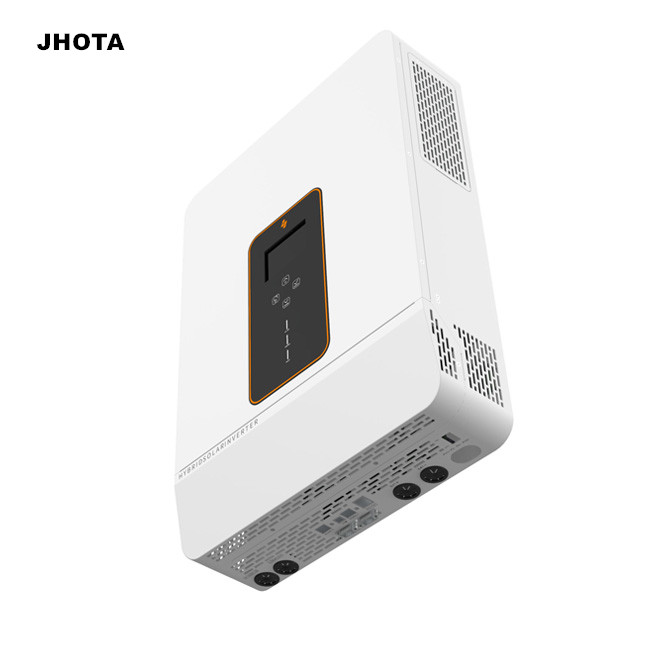

    Product image:
    500Vdc Photovoltaic Energy Storage Inverter 10KW 240 Volt Split Phase Inverter500Vdc Photovoltaic Energy Storage Inverter 10KW 240 Volt Split Phase Inverter
