IEC61683 3000W Home Battery Inverter 100A Hybrid Off Grid Inverter Solar

Shenzhen Jinghongtai Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap IEC61683 3000W Home Battery Inverter 100A Hybrid Off Grid Inverter Solar from wholesalers

    Buy cheap IEC61683 3000W Home Battery Inverter 100A Hybrid Off Grid Inverter Solar from wholesalers
    • Buy cheap IEC61683 3000W Home Battery Inverter 100A Hybrid Off Grid Inverter Solar from wholesalers
    • Buy cheap IEC61683 3000W Home Battery Inverter 100A Hybrid Off Grid Inverter Solar from wholesalers

    IEC61683 3000W Home Battery Inverter 100A Hybrid Off Grid Inverter Solar

    Ask Lasest Price
    Brand Name : JHOTA
    Model Number : HF2430U60-100
    Certification : CE/EMC/FCC/CETL/IEC61683
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100pcs
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    IEC61683 3000W Home Battery Inverter 100A Hybrid Off Grid Inverter Solar

    JHOTA Solar 3000W PV 100V Input AC 110/120V OutPut Match 24V battery Pure Sine Wave Off-grid Inverter Optional Wifi Module


    Quick Details:

    1. MOQ: 5
    2. Best choice for home energy storage
    3. Warrenty: 3 Years
    4. Mains Maximum AC Charging Current: 40A
    5. Rated AC Input Voltage: 110/120Vac
    6. AC Input Voltage Range: (90Vac-140Vac) ±2%


    Description:

    LCD status display: It has its own LCD status display, which is convenient for monitoring the entire system. The LCD display provides accurate readings of information such as battery status and connected load information.
    It is a new type of solar energy storage inverter control integrated machine, which integrates solar energy storage and commercial charging energy storage and pure sine wave output.


    Specification:

    Battery Input
    Battery typeSealed, FLood, GEL, LFP, Ternary
    Rated Battery Input Voltage24V ( Minimum Startup Voltage 22V)
    Hybrid Charging Maximum Charging Current100A
    Battery Voltage Range20Vdc~33Vdc ± 0.3Vdc(Undervoltage Warning/Shutdown Voltage/Overvoltage
    Warning/Overvoltage Recovery...)
    Solar Input
    Maximum PV Open-circuit Voltage100Vdc
    PV Working Voltage Range30-100Vdc
    MPPT Voltage Range30-85Vdc
    Maximum PV Input Current40A
    Maximum PV Input Power1600W
    Maximum PV Charging Current60A
    AC Input (generator/grid)
    Mains Maximum Charging Current40A
    Rated Input Voltage110/120Vac
    Input Voltage Range(90Vac-140Vac) ±2%
    Frequency50Hz / 60Hz (Automatic Detection)
    Mains Charging Efficiency>95%
    Switch Time (bypass andinverter)10ms (Typical Value)
    Maximum Bypass Overload Current40A
    AC Output
    Output Voltage WaveformPure Sine Wave
    Rated Output Voltage (Vac)120Vac (100/105/110Vac)
    Rated Output Power (VA)3000 (2500/2625/2750)
    Rated Output Power(W)3000 (2500/2625/2750)
    Peak Power6000VA
    On-load Motor Capacity2HP
    Output Frequency Range(Hz)50Hz ± 0.3Hz / 60Hz ± 0.3Hz
    Maximum Efficiency>92%
    No-load LossNon Energy-saving Mode: ≤50W Energy-saving Mode: ≤25W (Manual Setup)
    General
    CertificateCE(IEC 62109-1)/CETL(UL 1741/ CSA C22.2 NO.107.1)
    EMC Certification LevelEN61000,C2
    Working Temperature Range-15°C ~ 55°C
    Storage Temperature Range-25°C ~ 60°C
    Humidity Range5% to 95% (Conformal Coating Protection)
    Noise<60db
    Dimensions378mm*280mm*103mm
    Weight6.8KG

    Advantages:

    1. Dual LFP battery activation method: PV & mains.
    2. Load friendly: Stable sine wave AC output via SPWM modulation.
    3. Full digital voltage and current double closed-loop control, advanced SPWM technology, output pure sine wave.
    4. 360° all-round protection, with multiple protection functions.
    5. Perfect protection, including short circuit protection, overvoltage and undervoltage protection, overload protection.
    6. Power saving: power saving mode automatically reduces power consumption at zero-load.

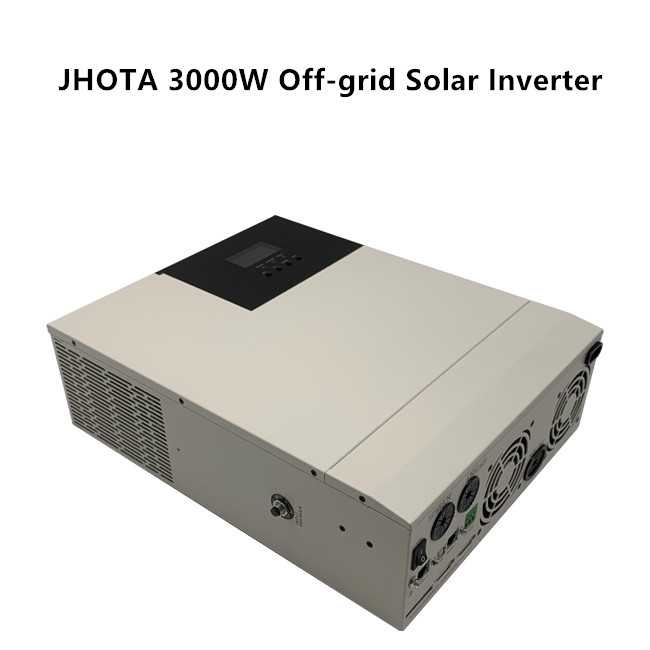

    Product image:
    IEC61683 3000W Home Battery Inverter 100A Hybrid Off Grid Inverter SolarIEC61683 3000W Home Battery Inverter 100A Hybrid Off Grid Inverter Solar
