    120A Hybrid Inverter Off Grid 3.5KW Solar Inverter Generator Compatible

    Ask Lasest Price
    Brand Name : JHOTA
    Model Number : HF4835U80-145
    Certification : CE/EMC/FCC/CETL/IEC61683
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100pcs
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    120A Hybrid Inverter Off Grid 3.5KW Solar Inverter Generator Compatible

    Solar 3.5KW PV 145V Input AC 110/120V OutPut Match 48V battery Off-grid Inverter Optional Wifi Module

    Quick Details:

    1. MOQ: 5
    2. Best choice for home energy storage
    3. Warrenty: 3 Years
    4. Maximum PV Input Power: 4400W
    5. Maximum PV Charging Current: 80A
    6. AC Input Voltage Range: (90Vac -140Vac) ± 2%


    Description:

    Generator Compatible: It is compatible with generators and can be used as an alternative input power source to ensure power continuity when solar energy is insufficient and access to the utility grid is not available.

    High Efficiency: High efficiency (up to 99%) guarantees low conversion losses, effectively saving energy, reducing energy waste and ensuring optimal system operation.

    LED status indicator: Equipped with LED status indicator to display the running status of the product, which is convenient for users to monitor the power status.


    Specification:

    Battery Input
    Battery typeSealed,FLood,GEL,LFP,Ternary
    Rated Battery Input Voltage48V(Minimum Startup Voltage 44V)
    Hybrid Charging Maximum Charging Current120A
    Battery Voltage Range40Vdc~60Vdc ± 0.6Vdc(Undervoltage Warning/Shutdown Voltage/Overvoltage Warning/Overvoltage Recovery...)
    Solar Input
    Maximum PV Open-circuit Voltage145Vdc
    PV Working Voltage Range60-145Vdc
    MPPT Voltage Range60-115Vdc
    Maximum PV Input Current50A
    Maximum PV Input Power4400W
    Maximum PV Charging Current80A
    AC Input (generator/grid)
    Mains Maximum Charging Current40A
    Rated Input Voltage110/120Vac
    Input Voltage Range(90Vac-140Vac)±2%
    Frequency50Hz / 60Hz (Automatic Detection)
    Mains Charging Efficiency>95%
    Switch Time (bypass andinverter)10ms (Typical Value)
    Maximum Bypass Overload Current40A
    AC Output
    Output Voltage WaveformPure Sine Wave
    Rated Output Voltage120 (100/105/110Vac)
    Rated Output Power3500 (2900/3050/3200VA)
    Rated Output Power3500 (2900/3050/3200W)
    Peak Power6000VA
    On-load Motor Capacity2HP
    Output Frequency Range(Hz)50Hz ± 0.3Hz / 60Hz ± 0.3Hz
    Maximum Efficiency>92%
    No-load LossNon Energy-saving Mode: ≤50W Energy-saving Mode: ≤25W (Manual Setup)
    General
    CertificateCE(IEC 62109-1)/CETL(UL 1741/ CSA C22.2 NO.107.1)
    EMC Certification LevelEN61000,C2
    Working Temperature Range-15°C ~ 55°C
    Storage Temperature Range-25°C ~ 60°C
    Humidity Range5% to 95% (Conformal Coating Protection)
    Dimensions426mm*322mm*124mm
    Weight10.8 KG

    Advantages:

    1. Instant viewing of operation: the LCD panel displays data and settings ,while you can also be viewed using the app and web page.
    2. Power saving: power saving mode automatically reduces power consumption at zero-load.
    3. Efficient heat dissipation: via intelligent adjustable speed fans.
    4. Multiple safety protection functions: short circuit protection, overload protection, reverse polarity protection, and so on.
    5. Under-voltage and over-voltage protection and reverse polarity protection.
    6. Three-year warranty time, worry-free after-sales.

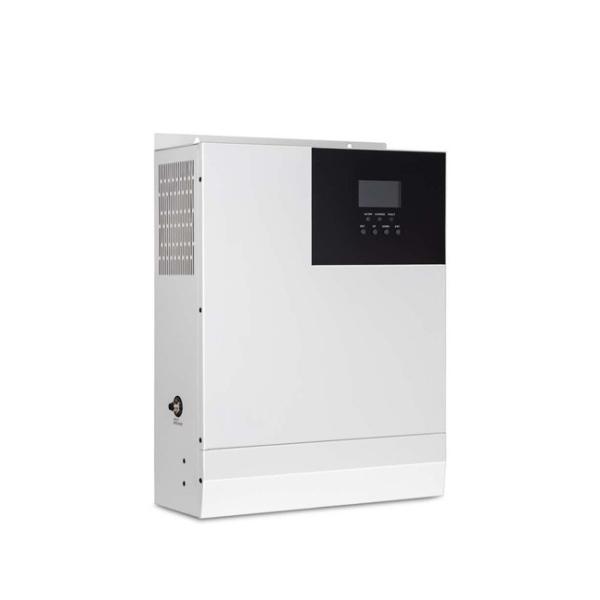

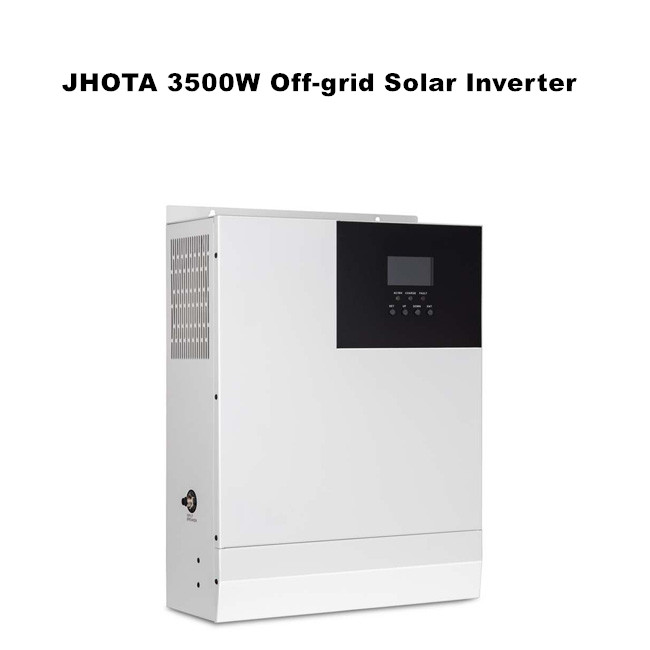

    Product image:
    120A Hybrid Inverter Off Grid 3.5KW Solar Inverter Generator Compatible120A Hybrid Inverter Off Grid 3.5KW Solar Inverter Generator Compatible
