    All In One Home Energy Storage System 3.5KW Off Grid Inverter With 10kwh Battery

    Ask Lasest Price
    Brand Name : JHOTA
    Model Number : HLSB06
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100pcs
    Delivery Time : 30-40 days
    • Product Details
    • Company Profile

    All In One Home Energy Storage System 3.5KW Off Grid Inverter With 10kwh Battery

    Specification
    Model
    JHOTA HLSB06
    BATTERY
    Battery Energy
    10kWh
    Battery Type
    LiFePO4
    Battery Capacity
    400AH
    Weight
    55kg
    Dimension L× D× H
    510×460×420mm
    Battery Rated Voltage
    25.6V
    Battery Max Voltage
    29.2V
    Maximum Charging Current
    100A
    Maximum Discharging Current
    150A
    DOD
    80%
    Cut Off Voltage
    22V
    Designed Life-span
    4000 Times
    PV CHARGE
    Solar Charge Type
    MPPT
    Maximum Output Power
    1400W
    PV Charging Current Range
    0~80A
    PV Operating Voltage Range
    30~100V
    MPPT Voltage Range
    30~85V
    AC CHARGE
    Maximum Charge Power
    2640W
    AC Charging Current Range
    0~80A
    Input Voltage Range
    90~280Vac
    AC OUTPUT
    Rated Output Power
    3.5KW
    Maximum Output Current
    30A
    Frequency
    50Hz
    Overload Current
    30A
    BATTERY INVERTER OUTPUT
    Rated Output Power
    3.5KW
    Maximum Peak Power
    6KVA
    Power Factor
    1
    Rated Output Voltage (Vac)
    230Vac
    Frequency
    50Hz
    Auto Switch Period
    <15ms
    THD
    <3%
    GENERAL DATA
    Communication
    WIFI
    Storage time / temperature
    6 months @25℃;3 months @35℃;1 months @45℃;
    Charging temperature range
    0~55℃
    Discharging temperature range
    -10~55℃
    Operation Humidity
    5% ~85℃
    Nominal Operation Altitude
    <2000m
    Cooling Mode
    Air Cooling
    Noise
    60dB (A)
    Ingress Protection Rating
    IP20
    Recommended Operation Environment
    Indoor
    Installation Method
    Horizontal

    Product Description

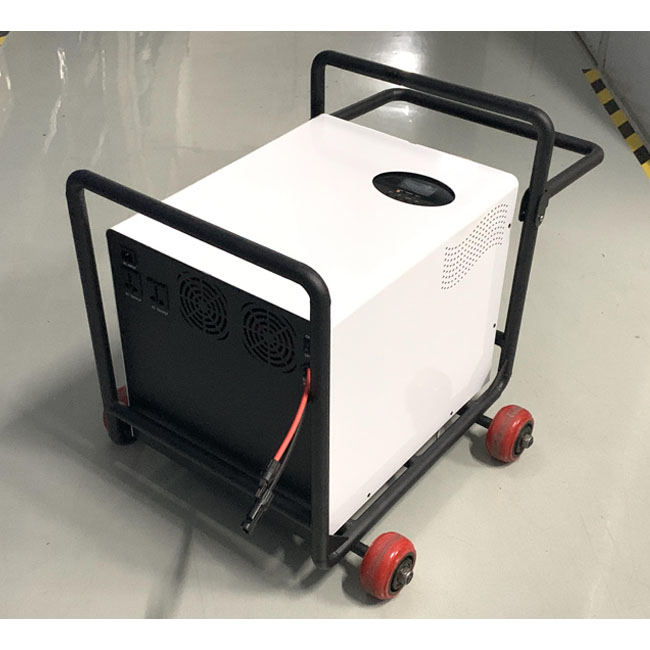

    Four-wheeled cart 3.5KW off-grid inverter with 12.8kwh Battery All-in-one Energy Storage

    All In One Home Energy Storage System 3.5KW Off Grid Inverter With 10kwh Battery

    Quick Details:

    1. Warrenty: 3 Years
    2. AC Rated Output Power: 3KW
    3. Communication: WIFI
    4. Power Factor: 1
    5. Auto Switch Period: <15ms
    6. THD: <3%

    All In One Home Energy Storage System 3.5KW Off Grid Inverter With 10kwh Battery

    Advantages:

    1. JHOTA HLSB06 All-in-one Home Energy Storage System is a multifunctional inverter/charger that combines the functions of an inverter, solar charger and battery charger to provide uninterruptible power support in a portable size.

    2. LCD status display: It has its own LCD status display, which is convenient for monitoring the entire system. The LCD display provides accurate readings of information such as battery status and connected load information.

    3. It is a new type of solar energy storage inverter control integrated machine, which integrates solar energy storage and commercial charging energy storage and pure sine wave output.

    FAQ

    1. How can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment.

    2.What can you buy from us?
    Battery Pack, Lithium Ion Battery, Lifepo4 Cell, BMS.

    3. Why should you buy from us not from other suppliers?
    We specialize in this field for many years with advanced equipment, scientific management techniques, and excellent quality control which earn us customers all over the world.

    4. What services can we provide?
    Accepted Delivery Terms: FOB, EXW, Express Delivery;
    Accepted Payment Currency: USD, CNY;
    Accepted Payment Type: T/T, PayPal.
