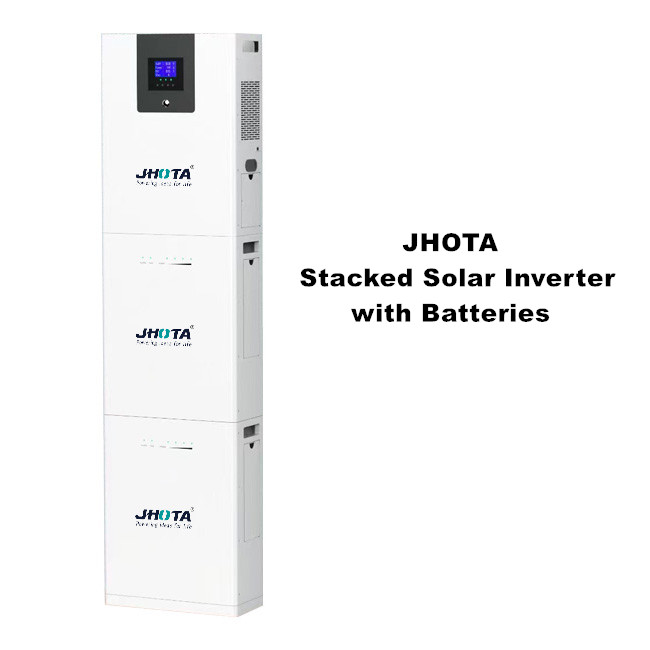

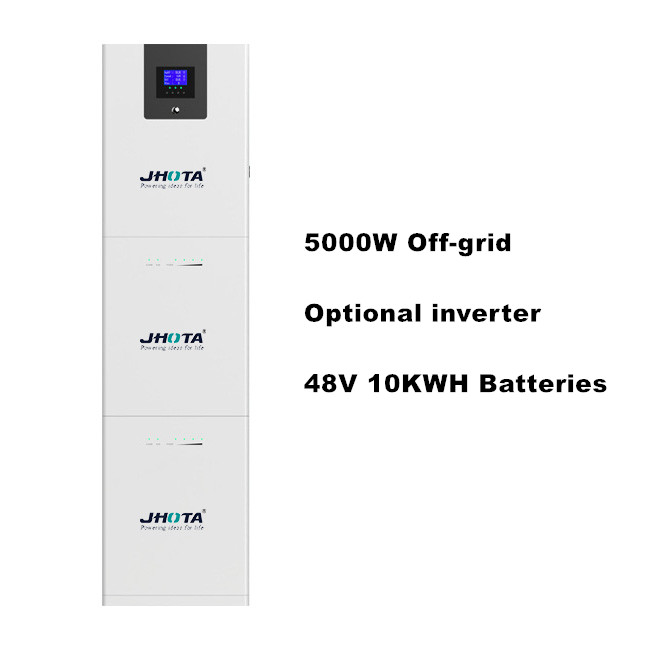

Stacked Home Energy Storage System 10KWH Off Grid Inverter Battery 48V

Shenzhen Jinghongtai Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Stacked Home Energy Storage System 10KWH Off Grid Inverter Battery 48V from wholesalers

    Buy cheap Stacked Home Energy Storage System 10KWH Off Grid Inverter Battery 48V from wholesalers
    • Buy cheap Stacked Home Energy Storage System 10KWH Off Grid Inverter Battery 48V from wholesalers
    • Buy cheap Stacked Home Energy Storage System 10KWH Off Grid Inverter Battery 48V from wholesalers

    Stacked Home Energy Storage System 10KWH Off Grid Inverter Battery 48V

    Ask Lasest Price
    Brand Name : JHOTA
    Model Number : HLSB01
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100pcs
    Delivery Time : 30-40 days
    • Product Details
    • Company Profile

    Stacked Home Energy Storage System 10KWH Off Grid Inverter Battery 48V

    Specification
    Model Number
    HLSB01
    Battery parameters
    Nominal Voltage
    48V
    Rated Capacity
    Typical 200Ah
    Minimum 190Ah
    Charging Voltage
    54.75V
    Charging Mode
    C.C / C.V.
    Voltage at end of Discharge
    37.5V
    Rated Charge Current
    ≤60A
    Maximum Continuous Charge Current
    ≤80A
    Internal Impedance
    <100mΩ
    Rated Discharge Current
    ≤200A
    Maximum Continuous Discharge Current
    ≤200A
    Overcharge Voltage
    3.65±0.05V (Adjustable)
    Over Discharge Cut Off Voltage
    2.5±0.01V (Adjustable)
    Over Current
    Discharge overcurrent value: ≧205A
    Short Circuit
    Detection condition
    Release condition
    Operation Temperature Range
    Charge: 0~55℃
    Discharge: -20~55℃
    Storage Temperature Range
    Less than 7 day : -20~65℃
    Inverter parameters
    Solar Input
    Maximum PV Open-circuit Voltage
    500vdc
    PV Working Voltage Range
    120-500Vdc
    MPPT Voltage Range
    120-450Vdc
    Maximum PV Input Current
    18A
    Maximum PV Input Power
    5200W
    Maximum PV Charging Current
    80A
    AC Input (generator / grid)
    Mains Maximum Charging Current
    40A
    Rated Input Voltage
    110/120Vac
    Input Voltage Range
    (90Vac~140Vac)±2%
    Frequency
    50Hz/ 60Hz (Automatic Detection)
    Mains Charging Efficiency
    >95%
    Switch Time (bypass and inverter)
    10ms(Typical Value)
    Maximum Bypass Overload Current
    63A
    AC Output
    Output Voltage Waveform
    Pure Sine Wave
    Rated Output Voltage
    120 (100/105/110Vac)
    Rated Output Power
    5000 (4100/4300/4500VA)
    Rated Output Power
    5000 (4100/4300/4500W)
    Peak Power
    10000VA
    On-load Motor Capacity
    4HP
    Output Frequency Range (Hz)
    50Hz土0.3Hz/60Hz±0.3Hz
    Maximum Efficiency
    >90%
    No-load Loss
    Non Energy-saving Mode: ≤50W Energy-saving Mode:≤25W (Manual Setup)
    General
    Humidity Range
    5% to 95%(Conformal Coating Protection)
    Dimensions
    603*200*1600mm
    Weight
    about 200kg
    Communication mode
    Working voltage, working current, remaining capacity

    Product Description

    Stacked Home Energy Storage System off-grid inverter 10KWH Battery 48V

    Stacked Home Energy Storage System 10KWH Off Grid Inverter Battery 48V

    Quick Details:

    1. Warrenty: 3 Years
    2. OEM/ODM: Accepatable
    3. AC Rated Output Power: 5KW
    4. Battery Nominal Voltage: 48V
    5. Battery Norminal Capacity: 200ah
    6. Application: Backup Power for home and commercial solar energy stystem

    Stacked Home Energy Storage System 10KWH Off Grid Inverter Battery 48V

    Our Factory

    1. The Home Energy Storage System (Split Type) stores excess PV energy for nighttime use and provides backup power for essential equipment, improving overall efficiency and offering emergency support.

    2. Product Features: Battery has a long lifespan, lightweight, and meets IP54 requirements. The surface coating lasts over 5 years without rusting. Volume and weight are significantly less than lead-acid batteries, making it more portable.

    3. JHOTA is a professional energy storage manufacturer and exporter, specializing in solar and lithium battery energy storage. With a dedicated R&D, production, and service team, we offer competitive pricing and high-quality products. Our factory's strategic location near Yantian Port ensures efficient global distribution. Our mission is to promote safe and sustainable solar energy usage, improve production efficiency, and enhance human life. We are committed to meeting all your needs.

    FAQ

    Q1: Can we put different LiFePO4 battery pack in parallel or series by ourself?
    Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;

    <1> Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.
    <2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
    <3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
    <4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself. Or it may cause danger and hurt the cycle life of battery.

    Q2: Can we put different LiFePO4 battery pack in series by ourself?
    You can buy big voltage directly from us. We suggest do not out them in series by yourself, it will hurt the cycle life of the
    pack.

    Q3: Does your battery pack include BMS? Can we use it for car?
    Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for
    standard car directly, that will need more complex design BMS for the pack.

    Q4: What is your warranty?
    We offer 3 years warranty for most of our battery pack. we ensure at least 3000 cycle life for the LiFePO4 battery pack, which means, after 3000@80% DOD, there will still around 60% capacityt left. You can use it for at least 5 years for normal 1 time charge and discharge everyday.
