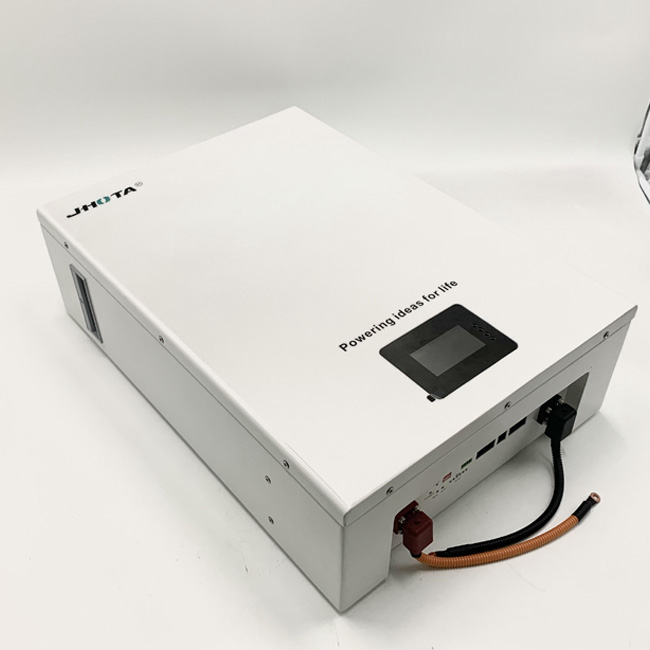

UN38.3 Home Lithium Storage Battery 51.2V 100AH Wall Mounted Lithium Battery

Shenzhen Jinghongtai Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap UN38.3 Home Lithium Storage Battery 51.2V 100AH Wall Mounted Lithium Battery from wholesalers

    Buy cheap UN38.3 Home Lithium Storage Battery 51.2V 100AH Wall Mounted Lithium Battery from wholesalers
    • Buy cheap UN38.3 Home Lithium Storage Battery 51.2V 100AH Wall Mounted Lithium Battery from wholesalers
    • Buy cheap UN38.3 Home Lithium Storage Battery 51.2V 100AH Wall Mounted Lithium Battery from wholesalers

    UN38.3 Home Lithium Storage Battery 51.2V 100AH Wall Mounted Lithium Battery

    Ask Lasest Price
    Brand Name : JHOTA
    Model Number : JHT-CN003-00
    Certification : UN38.3, CE, CB, Dangerous package syndrome
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 15-40 days
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    UN38.3 Home Lithium Storage Battery 51.2V 100AH Wall Mounted Lithium Battery

    Specification
    Model
    5KWH Wall-Mounted Energy Storage
    System
    BATTERY
    Battery Type
    LifePo4
    Battery Energy
    5000Wh
    Battery Capacity
    100Ah (Min 95Ah)
    5KWH Energy Storage System Net Weight
    45kg
    5KWH Energy Storage System Net Dimension
    625*430*170 mm
    Battery Rated Voltage
    48V (15S)
    Overcharge Protection Voltage
    54.75V
    Overdischarge Protection Voltage
    37.5V
    Maximum Charging Current
    80A
    Maximum Discharging Current
    100A
    Packing Part Il Weight: Battery
    51 KG
    Packing Part Il Dimension: Battery
    745*550*320 mm
    DOD
    80%
    Designed Life-span
    6000
    PV CHARGE
    Maximum PV Open-circuit Voltage
    500vdc
    PV Working Voltage Range
    120-500Vdc
    MPPT Voltage Range
    120-450Vdc (Suggest: 300 - 400Vdc)
    Maximum PV Input current
    18A
    Maximum PV Input Power
    5200W (Suggest: 1500 - 2000W)
    Maximum PV Charing Current
    80A
    MAINS CHARGING
    Rated Input Voltage
    220/230Vac(√) 110/120Vac( )
    Input Voltage Range
    UPS Mains Mode: (170Vac - 280Vac) ± 2%
    APL Generator Mode: (90Vac - 280Vac) ± 2%
    Mains Maximum Charging Current
    60A
    Mains Charging Efficiency
    >95%
    GENERAL DATA
    Certificate
    CE, UN38.3, MSDS, IEC 62619, Sea report
    Number of Parallel
    Maximum support 14 pcs in parallel connection
    Storage time / Temperature
    6 months @25°C;
    3 months @35°C;
    1 months @45°C;
    Charging Temperature Range
    -10~55°C
    Discharging Temperature Range
    -10~55°C
    Operation Humidity
    5%~95°C
    Noise
    60dB (A)
    Recommended Operation Environment
    Indoor
    Installation Method
    Horizontal

    Product Description

    Home Energy Storage System Power 51.2V 100AH Lifepo4 Wall-mounted Battery

    UN38.3 Home Lithium Storage Battery 51.2V 100AH Wall Mounted Lithium Battery

    Quick Details:

    1. Warrenty: 5 Years
    2. Best choice for Home Energy Storage System Power
    3. Battery Type: LifePo4
    4. Module Capacity: 5.12KWH
    5. Charging Mode: C.C / C.V.
    6. Voltage at end of Discharge: 40V

    UN38.3 Home Lithium Storage Battery 51.2V 100AH Wall Mounted Lithium Battery

    Appliciation

    - Residential energy backup during power outages
    - Off-grid cabins or vacation homes
    - Powering outdoor recreational vehicles and equipment
    - Backup power for government facilities and buildings
    - Powering remote wildlife tracking and conservation efforts
    - Powering off-grid RVs and motorhomes

    Our Factory

    1. JHOTA is a company serving the industrial supporting market since 2019.
    2. JHOTA offers a one-stop seamless connection service from cell, pack scheme, finished pack manufacturing to terminal market application.
    3. JHOTA's mission is to improve the overall energy consumption efficiency of different kinds of electric/electronic appliances using Solar+Lithium Battery systems.
    4. JHOTA offers a range of Solar+Battery systems products, including Lithium battery, emergency lights and its inverter, solar home system, solar energy backup, and more products under R&D.

    UN38.3 Home Lithium Storage Battery 51.2V 100AH Wall Mounted Lithium Battery

    FAQ

    Q: Which parts of your product are developed by yourself?
    A: The main core components of our solar power generator products: hardware, software, BMS, structure, ID, etc., are independently developed and produced by our company.


    Q: What are the advantages of your company?
    A: Strong R & D team, independent R & D and production of main parts, to control product quality from the source.


    Q: Can you supply OEM &ODM service?
    A: Yes.


    Q: What kind of certificates your products have acquired?
    A: Most of our solar power products have acquired CE, FCC, UL and PSE certificates, which is able to satisfy most country’s importing requirements.
