    Partner with Us: 7.2KW Off-Grid Solar Inverters AC 220/230V PV 900V-450V for Resale

    Ask Lasest Price
    Brand Name : JHOTA
    Model Number : MPS-V MAX 7.2KW
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100pcs
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

    Partner with Us: 7.2KW Off-Grid Solar Inverters AC 220/230V PV 900V-450V for Resale

    Partner with Us: 7.2KW Off-Grid Solar Inverters AC 220/230V PV 900V-450V for Resale


    Quick Details of Home Battery Inverter:

    1. Best choice for home energy storage

    2. Warranty: 1 year

    3. USB charging ports

    4. Compatible with solar panels and batteries

    5. Battery overcharge and over-discharge protection


    Specification:

    MODEL

    MPS-V MAX 7.2KW

    Phase

    1 phase

    Maximum PV Input Power

    8200W

    Rated Output Power

    7200W / 7200VA

    Maximum Solar Charging Current

    160A

    GRID-TIE OPERATION

    PV Input (DC)

    Nominal DC Voltage / Maximum DC Voltage

    360VDC / 500VDC

    Start-up Voltage / Initial Feeding Voltage

    90VDC / 120VDC

    MPPT Voltage Range

    90VDC ~ 450VDC

    Number of MPPT Trachers / Maximum Input Current

    1 / 27A

    GRID OUTPUT (AC)

    Nominal Output Voltage

    200 / 230 / 240VAC

    Output Voltage Range

    195.5 ~ 253VAC

    Nominal Output Current

    31.3A

    Power Factor

    >0.99

    Feed-in Grid Frequency Range

    49~51±1Hz

    EFFICIENCY

    Maximum Conversion Efficiency (DC / AC)

    98%

    TWO LOAD OUTPUT POWER (V2.0)

    Full Load

    7200W

    Maximum Main Load

    7200W

    Maximum Second Load (Battery mode)

    2400W

    Main Load Cut Off Voltage

    44VDC

    Main Load Return Voltage

    48VDC

    OFF-GRID OPERATION

    AC INPUT

    AC Start-up Voltage/Auto Restart Voltage

    120-140VAC / 180VAC

    Acceptable Input Voltage Range

    90 ~ 280VAC or 170 ~ 280VAC

    Maximum AC Input Current

    40A

    Nominal Operating Frequency

    50 / 60Hz

    Surge Power

    14400W

    PV INPUT (DC)

    Maxi mum DC Voltage

    500VDC

    MPPT Voltage Range

    90VDC ~ 450VDC

    Number of MPPT Trackers / Maximum Input Current

    1 / 27A

    BATTERY MODE OUTPUT (AC)

    Nominal Output Voltage

    48VDC

    Output Wave from

    Pure sinewave

    Efficiency (DC to AC)

    94%

    BATTERY & CHARGER

    Nominal DC Voltage

    48VDC

    Maximum Solar Charging Current

    160A

    Maximum AC Charging Current

    140A

    PHYSICAL

    Dimension, D x Wx H

    537*390*130

    Net Weight (kgs)

    14.2


    Function of Home Battery Inverter:

    1. Voltage regulation

    2. Energy storage management

    3. Multiple operating modes

    4. Maximum power point tracking (MPPT)

    5. Auto-restart after shutdown

    Application of Home Battery Inverter:

    - Emergency backup power

    - RVs and motorhomes

    - Agriculture and farming operations

    - Solar-powered street lighting

    - Rural electrification projects

    - Off-grid water pumping systems


    Product advantages:

    Embracing Energy Independence using the Off-Grid Solar Inverter

    As a top manufacturer of off-grid solar inverters, we take pride in supplying a product that revolutionizes the way we harness and use renewable power. Our off-grid solar inverter delivers many positive aspects for residential and industrial customers, empowering them to embrace energy independence and contribute to a sustainable future.

    Among the list of key strengths of our off-grid solar inverter is its capability to operate autonomously, disconnected from the conventional electrical grid. With its integrated battery storage program, it makes it possible for users to create, store, and consume their own renewable power. This independence guarantees a trustworthy and uninterrupted power supply, even in remote places or for the duration of grid outages. Users can delight in reassurance knowing that they have handle over their power demands.

    Versatility is an additional standout feature of our off-grid solar inverter. It seamlessly integrates with a variety of renewable power sources, which include solar panels, wind turbines, and hydroelectric systems. This flexibility enables users to harness multiple sources of clean power, catering to different energy requirements and geographic situations. No matter if it really is for off-grid properties, remote cabins, or agricultural applications, our off-grid solar inverter supplies a customizable remedy.

    Furthermore, our off-grid solar inverter promotes sustainability and reduces environmental influence. By relying on renewable power sources, it minimizes reliance on fossil fuels and decreases carbon emissions. This not just assists combat climate transform but additionally contributes to a cleaner and greener planet for future generations. The efficient utilization of generated power via our off-grid solar inverter ensures optimal self-consumption and reduces power wastage.

    Reliability is often a important benefit of our off-grid solar inverter. With sophisticated energy management capabilities, it ensures a steady and continuous power provide, adapting to fluctuations in power generation and consumption. Customers can trust that their energy demands will be met regularly, even in difficult conditions.

    In conclusion, our off-grid solar inverter empowers people and businesses to embrace energy independence and sustainability. Its autonomous operation, versatility, sustainability, and reliability make it a compelling selection for those in search of a reliable and clean energy solution. With our off-grid solar inverter, users can take control of their power future and contribute to a more sustainable and resilient planet.

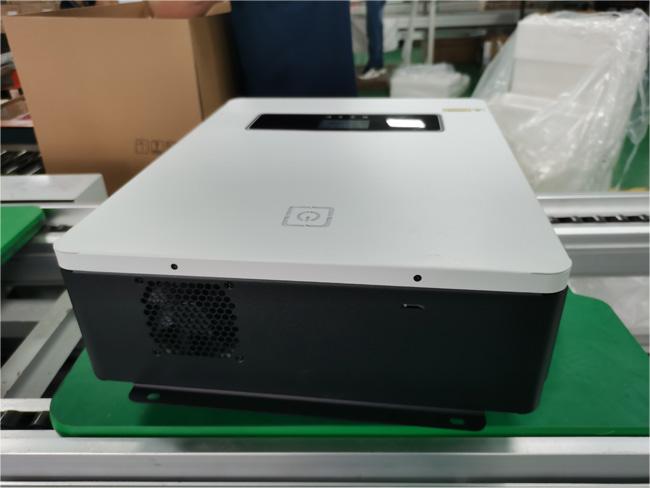

    Product image:
